Mastering Thermal Inertia: A Deep Dive into UNI EN ISO 13786:2018
In the realm of high-performance building physics, steady-state calculations (like simple U-values) often fail to capture the reality of how a building behaves under fluctuating external temperatures. To design structures that maintain comfort while minimizing HVAC loads, engineers must look toward UNI EN ISO 13786:2018.
This standard specifies the characteristics related to the dynamic thermal behavior of complete building components. It moves beyond simple insulation and into the territory of thermal inertia.
The Core Methodology: Periodic Thermal Transmittance
The regulation focuses on the “Dynamic Thermal Characteristics” of building elements when subjected to periodically varying temperatures (typically a 24-hour cycle).
Key parameters defined by the standard include:
- Periodic Thermal Transmittance (Yie): The complex ratio of the heat flow rate through the internal surface to the temperature variation at the external surface.
- Decrement Factor (f): The ratio of the periodic thermal transmittance to the steady-state thermal transmittance (U).
- Time Shift (Δt): The period of time between the maximum temperature on the outside and the maximum heat flow on the inside.
By optimizing these values, engineers can “shift” the peak solar heat gain of the afternoon to the cooler hours of the night, significantly reducing the cooling demand of the building.
Moving Beyond Manual Calculation
The analytical methods described in Annex A of ISO 13786 involve complex matrix algebra for multi-layered components. While spreadsheets can handle basic 1D heat flow, complex architectural details—such as thermal bridges or non-homogeneous layers—require a robust Finite Element Analysis (FEA) approach.
To perform these calculations with high precision and adherence to the standard, engineers can leverage open-source powerhouses: Calculix and PrePoMax.
Why use Calculix and PrePoMax?
- Transient Thermal Analysis: Calculix excels at solving the heat equation in the time domain, allowing you to simulate exactly how a wall assembly responds to a 24-hour sinusoidal temperature wave.
- Boundary Condition Precision: You can accurately model surface resistance and solar radiation as time-dependent boundary conditions.

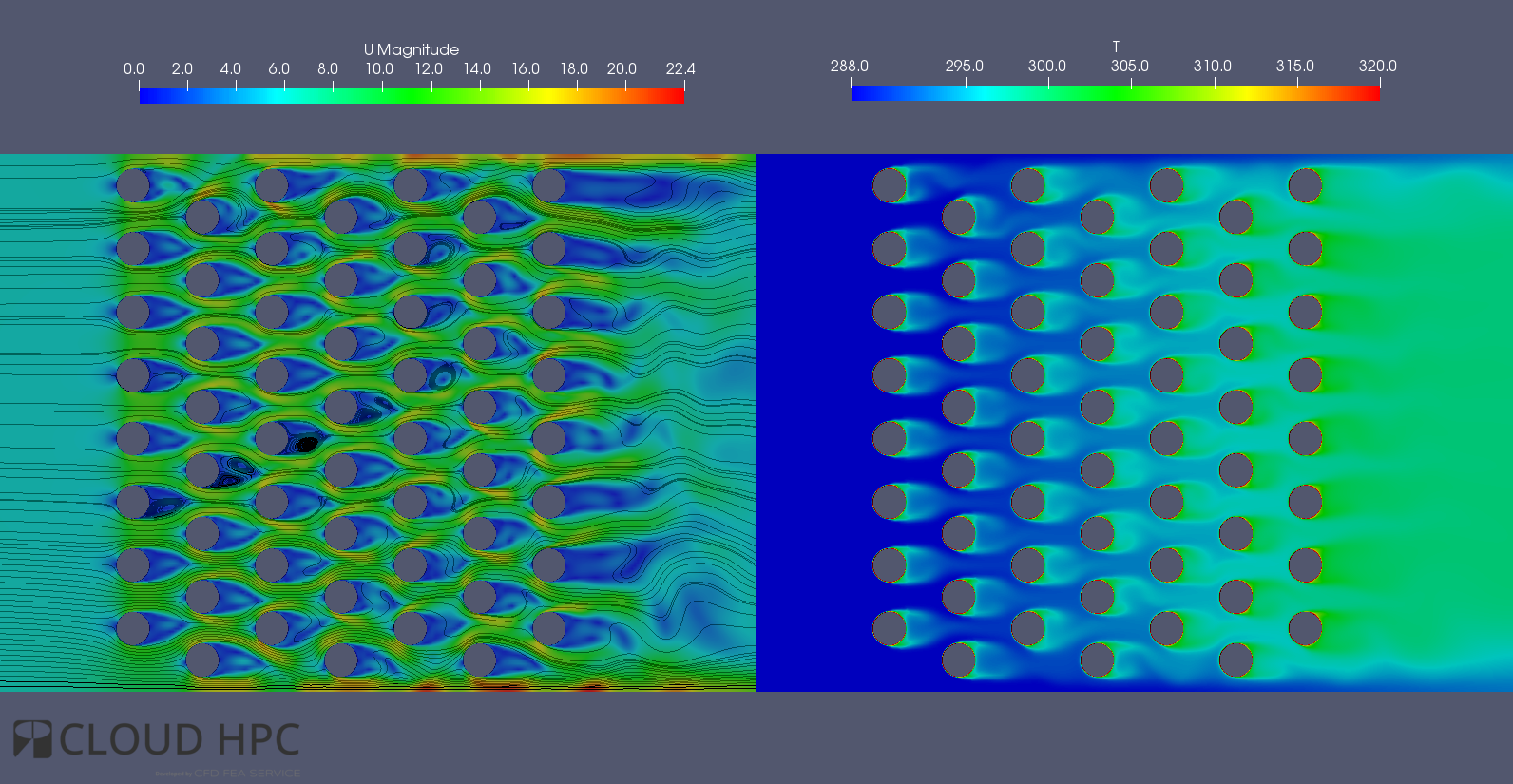

- Visualization in PrePoMax: PrePoMax acts as an intuitive GUI for Calculix, making it easy to mesh complex geometries and visualize the temperature gradient through the cross-section of your component over time.
Engineering Tip: When setting up your simulation, ensure your mesh density is sufficient to capture the thermal gradient near the surfaces, as this is where the most significant phase shifts occur.
Practical Application: Designing for the Future
Utilizing ISO 13786 isn’t just a regulatory hurdle; it’s a design strategy. High thermal inertia is critical for:
- Passive Cooling: Reducing dependence on mechanical chillers in Mediterranean or arid climates.
- Grid Stability: Shaving peak energy loads in “Smart Cities.”
- Occupant Comfort: Maintaining stable operative temperatures despite external volatility.
By integrating FEA tools like Calculix into your workflow, you can provide clients with data-driven proof of a building’s performance, far beyond what a simple steady-state calculation could ever offer.
