ElmerFEM – a basic tutorial
As the engineering world moves toward more complex, interconnected designs, the need for robust multi-physics simulation tools has never been greater. While commercial software often comes with a hefty price tag, Elmer FEM stands out as a powerful, open-source alternative capable of handling everything from fluid dynamics to electromagnetics.
In a recent video on youtube, viewers are given a practical look at how Elmer can be used to solve real-world engineering problems. Here is a breakdown of why Elmer is a game-changer for multi-physics and a summary of the mechanical analysis tutorial featured in the video.
What Makes Elmer FEM Special?
Developed primarily by CSC – IT Center for Science, Elmer is a finite element software suite designed for the numerical solution of partial differential equations. Its strength lies in its modular architecture, which allows it to simulate multiple physical phenomena simultaneously (multi-physics).
Key Applications in Engineering:
- Heat Transfer: Analyzing conduction and radiation in mechanical components.
- Fluid Dynamics: Solving Navier-Stokes equations for airflow or liquid cooling.
- Electromagnetics: Designing motors, transformers, and induction heating systems.
- Structural Mechanics: Performing stress, strain, and vibration analysis.
- Acoustics: Modeling sound propagation in various media.
Because Elmer is open-source and highly parallelizable, it is frequently used on supercomputers for massive simulations, yet it remains accessible enough for an engineer to run on a standard workstation.
Highlight: Linear Mechanical Analysis Tutorial
The video features a concise mini-tutorial that demystifies the Elmer workflow. It focuses on a Linear Mechanical Analysis of a simple beam—a foundational task for any structural engineer. Here is how the process unfolds:
1. Pre-Processing & Meshing

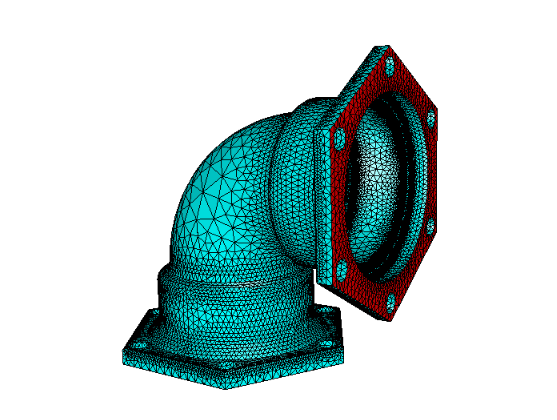

The tutorial begins with a mesh (often generated in tools like Gmsh or Salome). Elmer uses ElmerGrid to convert these meshes into a format the solver understands. In the video, we see how the graphical user interface (ElmerGUI) makes it easy to visualize the geometry before applying any physics.
2. Defining the Physics (The SIF File)
The core of any Elmer simulation is the .sif (Solver Input File). In the tutorial, the user sets up the Linear Elasticity equation. Key parameters include:
- Material Properties: Defining Young’s Modulus (stiffness) and Poisson’s Ratio for the material.
- Body Forces: Applying gravity or external loads to the structure.
3. Boundary Conditions
To simulate a real-world scenario, the tutorial demonstrates how to “fix” one end of the beam (Dirichlet boundary condition) so it doesn’t move, and apply a force or pressure to the other end. This setup mimics a cantilever beam under load.
4. Solving and Visualization
Once the “Start Solver” button is clicked, Elmer performs the heavy mathematical lifting. The video shows the convergence monitor tracking the progress of the linear system solvers. Finally, the results are exported to ParaView, where the displacement and von Mises stress fields are visualized in high-definition color gradients, showing exactly where the beam is most likely to fail.
Why You Should Try Elmer FEM
If you are looking to break away from proprietary licensing or need a tool that can handle complex “coupled” problems—like a fluid flow that causes a structure to heat up and deform—Elmer FEM is the tool for you.
The tutorial in the video proves that despite its reputation for being “academic,” the learning curve is manageable. With a supportive community and powerful capabilities, Elmer is a must-have in any modern engineer’s digital toolbox.
Watch the full tutorial here: Elmer FEM: Open Source Multi-Physics
