Beyond Raw Speed: Why Your CPU’s “Memory Neighborhood” (Especially LLC) is Crucial for OpenFOAM and FDS

Ever watched a complex CFD simulation crawl, or an FDS fire model take hours longer than you’d hoped? You might immediately blame your CPU’s clock speed or the amount of RAM you have. While these are certainly important, there’s a hidden hero in your computer’s architecture that plays a monumental role in the performance of simulation software: the memory hierarchy, particularly the Last Level Cache (LLC).

Let’s demystify the different types of memory and then dive into why a well-endowed LLC is like rocket fuel for applications like OpenFOAM and FDS.

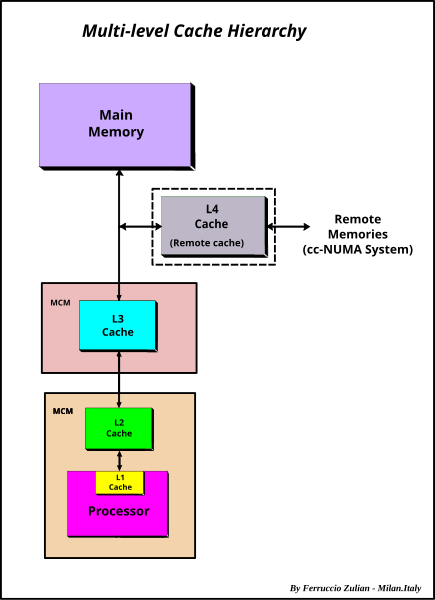

The Memory Ladder: From Warehouse to Workbench

Imagine your CPU as a super-fast chef, and your data as ingredients.

1. RAM (Random Access Memory) – The Pantry/Warehouse:
   • This is your computer’s main memory, where most active programs and their data reside.
   • Characteristics: Large capacity (8GB, 16GB, 32GB, often much more for simulations), relatively inexpensive per gigabyte.
   • Speed: It’s fast, but still significantly slower than the CPU – like needing to walk to a large pantry at the back of the kitchen every time you need an ingredient. This “walk” is called memory latency.
2. Cache Memory (L1, L2, L3) – The Workbench System:
   • Modern CPUs incorporate multiple levels of super-fast, small-capacity memory right on the chip itself. This is cache. Its purpose is to store frequently accessed data close to the CPU, minimizing trips to the slower RAM.
   • The CPU predicts what data it will need next (using principles like “locality of reference” – if you just accessed data, you’ll probably access nearby data soon, or the same data again soon).
   • Analogy: Instead of the pantry, think of having a small, ultra-convenient “workbench” right next to the chef.
   • L1 Cache (Level 1) – The Cutting Board/Immediate Pocket:
     • Characteristics: Smallest (tens of KB), fastest.
     • Location: Built directly into each CPU core. Each core has its own L1 instruction cache (for code) and L1 data cache (for data).
     • Speed: Operates at CPU clock speed. If the data isn’t here, the CPU faces a very short delay (a “hit” is instant, a “miss” means looking elsewhere).
   • L2 Cache (Level 2) – The Nearby Spice Rack/Desk Drawer:
     • Characteristics: Larger than L1 (hundreds of KB to a few MB), slightly slower than L1.
     • Location: Often dedicated to each CPU core, though sometimes shared between a pair of cores.
     • Speed: Still extremely fast, providing a second-tier buffer before hitting L3 or RAM.
   • L3 Cache (Level 3) – The Shared Prep Table/Communal Filing Cabinet:
     • Characteristics: Significantly larger than L1/L2 (tens of MB, sometimes hundreds). Slower than L1/L2, but still much faster than RAM.
     • Location: This is typically shared across all cores on a single CPU die. This shared nature is critical.
     • Speed: Acts as a common pool of fast memory for all cores on the chip.

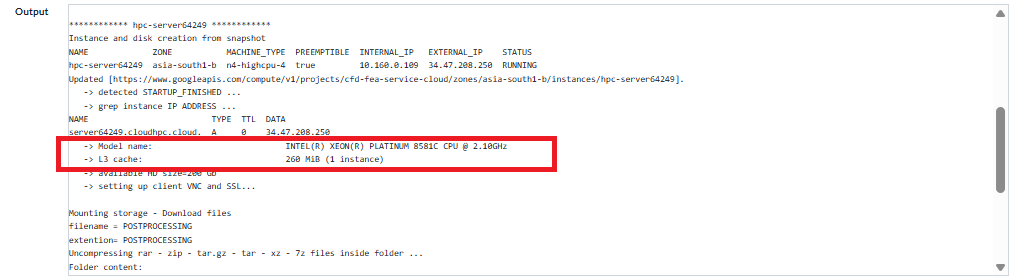

The Star of the Show: LLC (Last Level Cache)

On many modern CPU architectures, L3 Cache is the Last Level Cache (LLC). It’s the largest and slowest cache layer, but also the furthest “downstream” from the CPU cores before data has to be fetched from RAM. Its “last level” designation means if the data isn’t here, the CPU has to go all the way to main memory (RAM).

The truly powerful aspect of the LLC is its shared nature. Unlike L1 and L2 (which are usually per-core), the LLC serves all cores on the processor. This makes it a crucial resource for multi-threaded applications.

Why LLC is a Game-Changer for OpenFOAM and FDS

OpenFOAM, FDS, and other CFD/FEA software packages are prime examples of computationally intensive applications that benefit enormously from a large and efficient LLC. Here’s why:

1. Iterative Solvers and Stencil Operations:
   • Both OpenFOAM and FDS rely heavily on iterative numerical methods to solve systems of equations (e.g., Navier-Stokes, Boussinesq). These methods involve repeatedly performing calculations on a grid or mesh.
   • Many of these calculations are stencil operations, where the value at a given cell depends on its immediate neighbors. For example, calculating a velocity component might require values from the cell above, below, left, and right.
2. Locality of Reference and Data Reuse:
   • When one core processes a part of the simulation domain, it pulls in data for its cells and their neighbors. If this data (and its neighbors’ data) fits within the shared LLC, other cores that later access those same neighboring cells can find the data already in the fast cache. They don’t need to go all the way back to slow RAM.
   • This is especially true for algorithms that repeatedly access the same dataset or nearby data points, common in iterative refinement processes.
3. Efficient Inter-Core Communication (Ghost Cells/Halo Regions):
   • In parallel simulations (which you almost certainly use for OpenFOAM/FDS), the computational domain is decomposed and assigned to different CPU cores. However, each core needs information from its neighbors’ boundaries (often called “ghost cells” or “halo regions”) to correctly calculate its own domain.
   • When cores exchange this boundary data, if the LLC is large enough, this communicated data can be stored in the shared LLC. This means that instead of data traveling between cores via slow RAM (which involves significant latency), it’s exchanged directly through the much faster LLC. This drastically reduces the overhead of inter-process communication.
4. Reduced Latency and Increased Bandwidth:
   • Every “cache hit” (finding data in cache) avoids a much slower “cache miss” (having to go to RAM). A large LLC leads to a higher cache hit rate.
   • This translates directly to lower latency (how long it takes to get data) and more effective bandwidth (how much data can be moved per second) from the CPU’s perspective, as it’s not waiting for RAM fetches as often.

The Takeaway for Simulation Enthusiasts

When spec’ing out a new workstation for OpenFOAM, FDS, or similar CAE applications, don’t just look at core count and clock speed. A CPU with a generous Last Level Cache (L3 Cache) can provide disproportionate performance benefits, especially for large, parallel simulations involving iterative solvers:

• More LLC means more shared data can live closer to all cores.
• More LLC reduces trips to slow main memory.
• More LLC facilitates faster communication between parallel processes.

In essence, a large LLC ensures your powerful CPU cores are constantly fed the data they need, when they need it, leading to significantly faster simulation run times and making your computational work much more efficient. Don’t underestimate the power of a well-designed memory hierarchy!

---

What are your experiences with CPU cache and simulation performance? Share your thoughts in the comments below!

---
